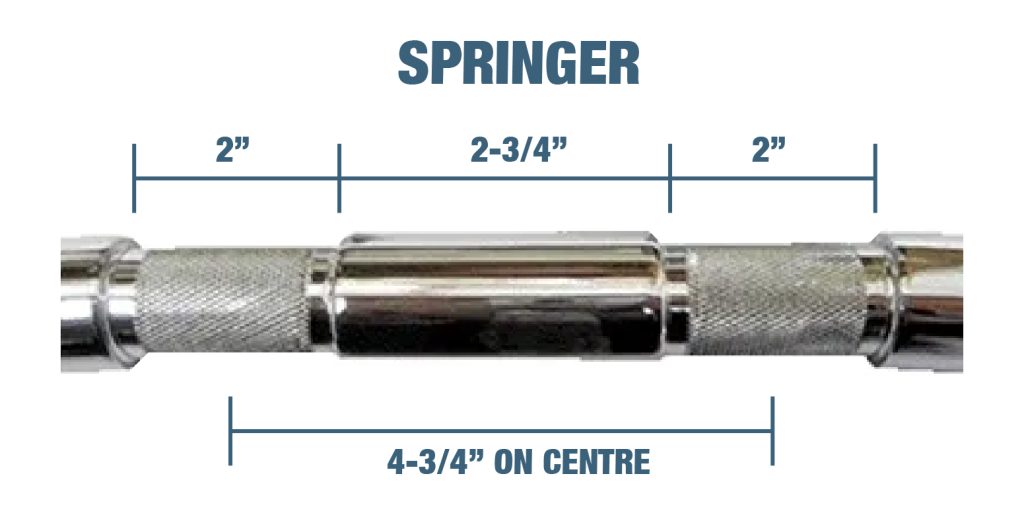

The standard 1-inch clamping section measures 5 inches in width, providing a secure and stable foundation for mounting. To ensure maximum strength and durability, a solid one-piece clamp is necessary. Additionally, the springer front end has a 4-3/4 inch center-to-center measurement, which is crucial for proper alignment and fitment. This combination of precise measurements and sturdy construction ensures optimal performance and reliability in your setup.
Thanks to Industries leaders Wild 1 Inc for providing us with Handlebar Mounting Fitments.
Wild 1 have been making top quality handlebars made in the USA since the mid 90’s.
To check the Clamping Area for your Motorcycle, please click on the Your BIKE MODEL below, then find the exact info for your Model and Year.
Bar Diameter 1″ – Clamp width 5.0″ – 2 Piece Clamp Must Be Replaced with WO538.
Bar Diameter 1″ – Clamp width 5.0″ – Stock Clamping Good.
SOLID CLAMP WO538 IS REQUIRED FOR ALL PRE 2008 MODELS. ADDED SECURITY FOR NEWER MODELS. Note: Some models will require cable change.
Bar Diameter 1″ – Clamp width 5.0″ – 2 Piece Clamp Must Be Replaced with WO538.
Bar Diameter 1″ – Clamp width 5.0″ – Stock Clamping Good.
2013 CVO Model has 1.25″ – Clamping & Requires WO539 clamping system.
Bar Diameter 1.250″ – Must use WO539 clamping system.
Bar Diameter 1″ – Clamp width 5.0″ – 2 Piece Clamp Must Be Replaced with WO538.
Bar Diameter 1″ – Clamp width 5.0″ – Stock Clamping Good.
Bar Diameter 1.250″ – Must use WO539 clamping system.
Bar Diameter 1-1/4″ – Clamp 5-1/8″ – WO806 needed for Apes & Classics – T-Bars Good.
Bar Diameter 1″ – Clamp 5-1/4″ – Slight Mods to Clamp, T-Bars need WO540 OR Gauge Relocation kits.
Bar Diameter 1-1/2″ – Apes & Classics Need Riser & Clamp Change – T-Bars Good.
Bar Diameter 1″ – Clamp 5″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Clamp 5″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Clamp 5-1/4″, Riser & Clamp Change – T-Bars Good.
Bar Diameter 1-1/4″ – Clamp 5″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1-1/4″ – Clamp 5-1/8″ – WO806 Needed for Apes & Classics – T-Bars Good.
Bar Diameter 1″ – Clamp 5″ – Stock Clamp Good – T-Bars Good – Apes & Classics Look Best with Short Risers.
Bar Diameter 1″ – Clamp 5-1/4″, Riser & Clamp Change – T-Bars Good.
Bar Diameter 1-1/4″ – WO806 Riser Adapter Needed for Apes & Classics – T-Bars Good.
Bar Diameter 1″ – Apes & Classics Require Riser and Clamp Change – T-Bars Good.
Bar Diameter 1″ – Apes Look Best with Short Risers – T-Bars Good.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Clamp 5-1/4″ – T-Bars need WO540 OR Gauge Relocation Kits.
Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Apes & Classics Require Riser & Clamp Change – T-Bars Good.
Bar Diameter 1-1/4″ – WO806 Riser Adapter Required for Apes & Classics – T-Bars Require Gauge Relocation.
Bar Diameter 1-1/4″ – WO806 Riser Adapter Required for Apes & Classics – T-Bars Require WO540 OR WO541 Gauge Relocation.
‘V’ Style Clamping – Requires Riser & Clamp Change – T-Bars Good.
ALL SPRINGER SOFTAILS 1988 – 2012 BAR DIAMETER 1″ – ALL APES AND CLASSICS GOOD. CVO SPRINGER BAR DIAMETER 1-1/4″ – WO807 RISER ADAPTER REQUIRED.
Stock Clamping Good – T-Bars Good.
Bar Diameter 1″ – Clamping Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Adjustable Risers Need to be Removed
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Stock Clamping Good – T-Bars Good.
Stock Clamp Good – T-Bars Good.
Lower Fork Tubes to Clear Apes & Classics – T-Bars Require Top Triple Tree Change.
Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamping Good – T-Bars Good.
Bar Diameter 1-1/4″ – WO806 Riser Adapter Required.
Bar Diameter 1-1/4″ – Classics & Apes Require WO806 Riser Adapter – T-Bars Good.
Bar Diameter 1-1/4″ – Apes & Classics Need WO806 Riser Adapter – T-Bars Good.
Bar Diameter 1-1/4″ – Clamp Width 5-1/2″ – Apes & Classics Require Riser & Clamp Change – T-Bars Good.
Note: Some models will require cable change and some added parts for correct install. Please call if you have any questions.
Stock Clamping Good – T-Bars Good.
Bar Diameter 1″ – Clamping Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Clamp 5.5″ – Riser & Clamp Change – Gauge Relocate.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamp Good – No T-Bar Mounting.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamping Good – T-Bars Good.
Bar Diameter 1″ – Clamp slight modification needed.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamp Good – T-Bars Good.
Bar Diameter 1″ – Stock Clamping Good – T-Bars Good.
Note: Some models will require cable change and some added parts for correct install. Please call if you have any questions.
